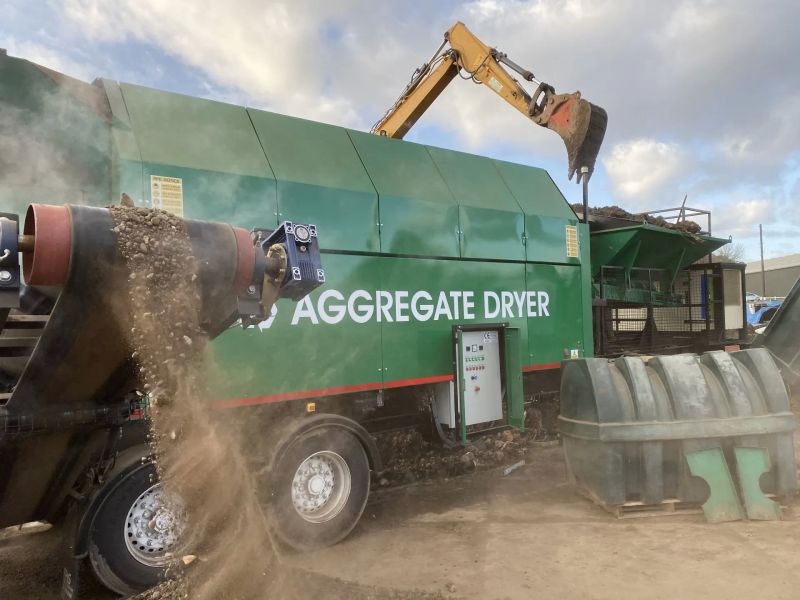

DRYING PLANT

Versatility

Drying on demand. with a 30 ton per hour capacity this unit will allow you to pull out valuable product from your saturated stock piles.

Simple to Use

An easy to use control panel mounted on the chassis needs only one operator.

Low Maintenance

Maintenance cycles at defined intervals ensure optimum efficiency.

All equipped with the following:-

• 40 foot road legal skeletal trailer
• Fully welded construction sub chassis
• A 150 x 30 x 2640 Dia support steel tire ring made from S275 steel
• 22+ lifters consisting of 11+ paddle lifters and 11+ tine lifters
• All fabricated from folded steel plate and welded RSA sections
• Drum supported by two off machined 200 Dia x 200 wide truncation rollers
• Continuous mix drum
• Drum rotated by a planetary drum drive gearbox
• 18kw motor using pulleys and v-belts
• Drum feed chute
• Extraction filter to be of cyclone
• Heater is a RL210 TC two stage operation with a working field of 1,423kw to 2,443kw
• Generator or mains conversion option electrical supply
• Electrical operation panel
• Full E-Stops safety devices, are to be in full accordance to relevant specific safety criteria and procedures
• British Standard Guarded Access stairway
• 1 off hot material discharge chute
• 2 ton capacity holding hopper with conveyor that feeds the plant at the desired rate depending on moisture rate
